PIE SuperTune MAXPORT SERIES Cylinder Heads

SuperTune  MAXPORT

EQ Heads

Level 2: CNC Ported

The EngineQuest (EQ) cylinder head is the best budget head available for the small block Mopar. It gets even better with our exclusive PIE SuperTune MAXPORT CNC porting. Have a look at what we offer.

Only $1899.95/pair

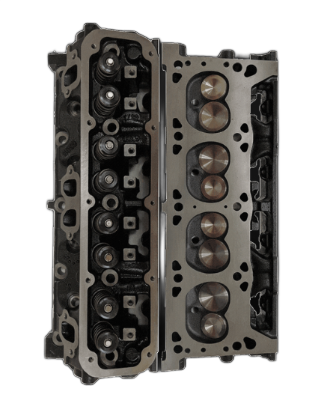

Small Block Mopar Magnum Stealth Heads Level 2

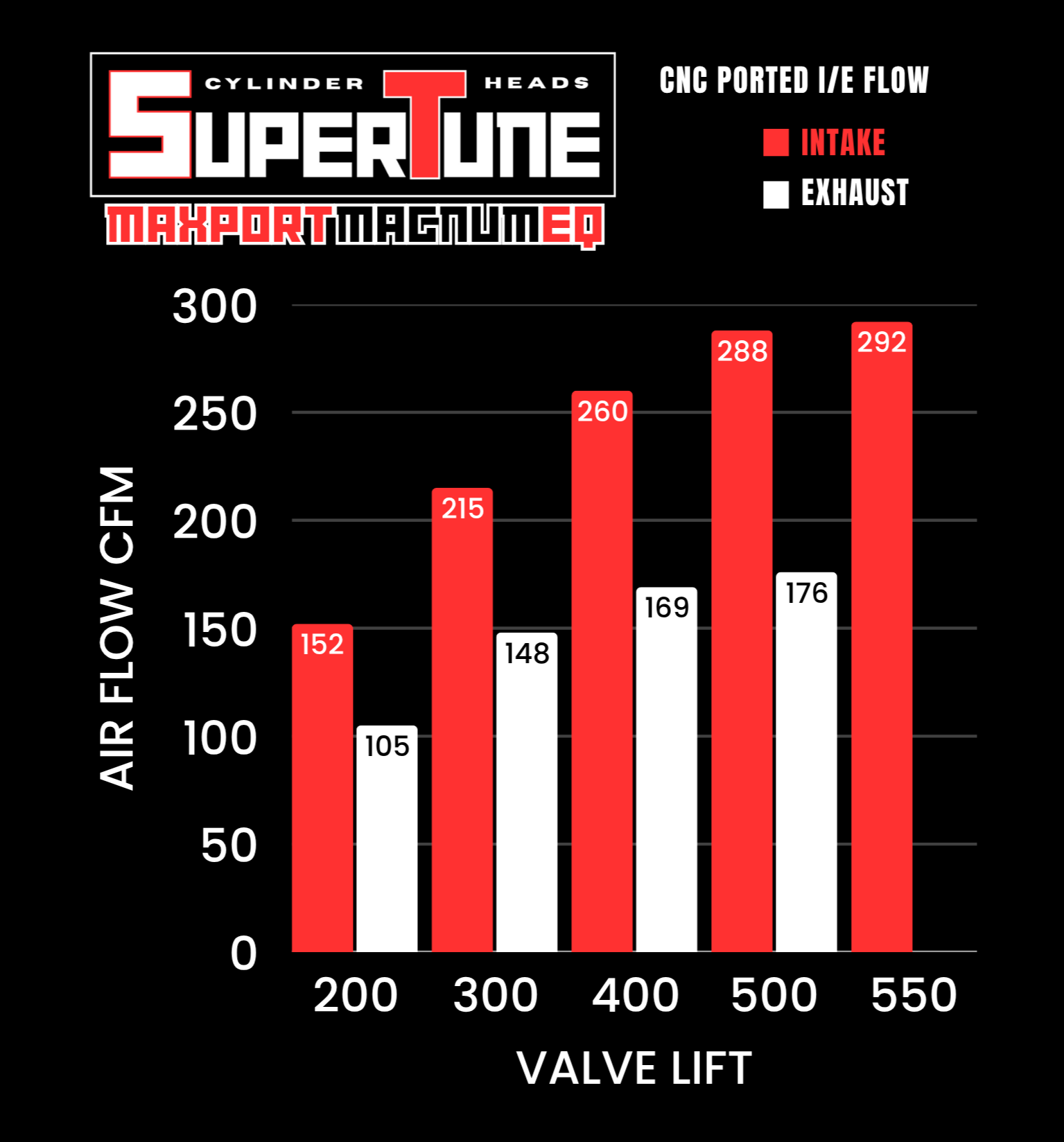

For those that want an iron head that delivers serious airflow we offer the iron stealth heads in a level 2 port configuration. This head delivers 290 cfm and is capable of supporting over 500 horsepower. Level 2 porting features a reworked short turn, chamber deshroud, bowl blend, a blending of the valve guide, and the pushrod pinch is reduced on the intake port. The exhaust receives a deep blending from the valve job into the bowl. We also perform a competition valve job on both the intake and the exhaust.


One very important upgrade that we perform as standard practice is to install manganese bronze valve guides in place of the factory iron. This ensures longer guide life and we can run the guide clearance tighter to reduce oil getting past the valve stem. This is an important detail the our competition overlooks.

BUY EQ Level 2 Heads

CNC Ported Level 2 Features



  • Stock location for headers, valve train, and front end accessories
  • 2.02" stainless intake and 1.625" stainless exhaust valves
  • valve spring 125# seat 315# open @ .575 lift max
  • 8mm valve stems





  • 172 cc intake runners and 72 cc exhaust runner


  • 62cc combustion chamber


  • Ductile iron exhaust seat to reduce cracking


  • Manganese bronze valve guides
