MOPAR LA 408 Crate Engine-Race Eliminator

This engine package is intended more for racing and making the most power we can. We have some larger cam choices available.

POWER RATING

600 hp @ 6,000 Rpm
555 ft/lb @ 5,000 Rpm

Shop 408 Race Eliminator Engine Shop All MAGNUM Crate Engines

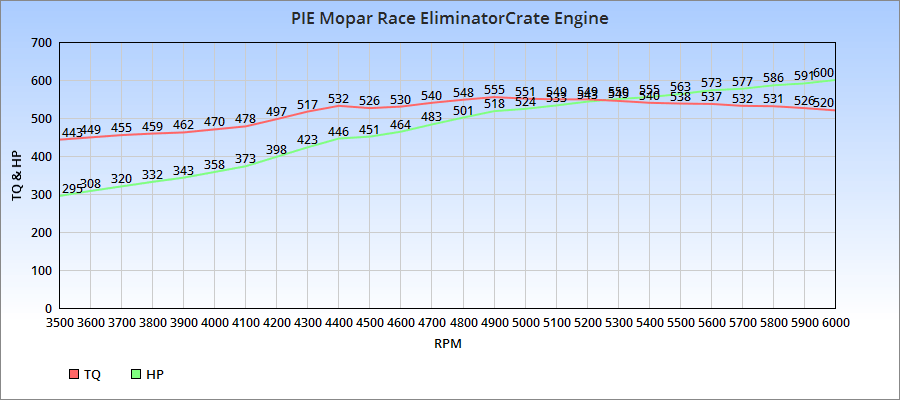

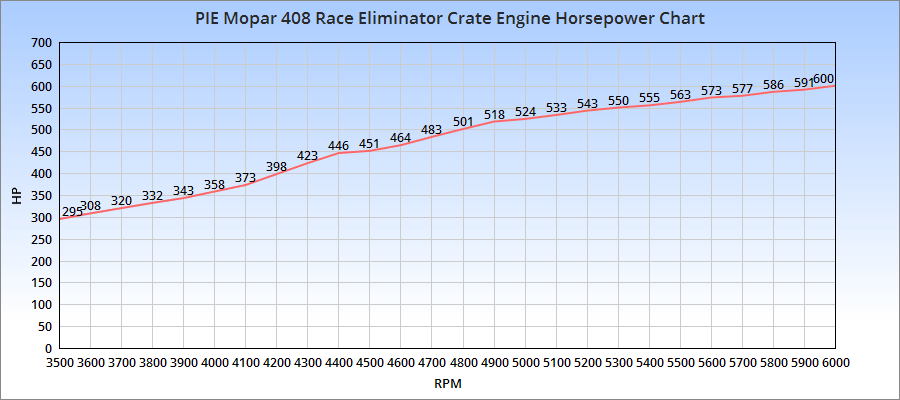

408 Race Eliminator Crate Engine Dyno Chart & Build Specs



  • BLOCK: 408 ci roller, 2-bolt main With ARP main studs (optional billet caps)
  • CRANKSHAFT: 4.000" Scat crankshaft (optional forged crank with internal balance)
  • CONNECTING RODS: 6.123" Eagle I Beam (rated to 700 hp)
  • PISTONS: 10.5:1 JE / SRP forged aluminum
  • PISTON RINGS: Speed pro file fit
  • CAMSHAFT: Hydraulic roller, duration @ .050: 242/246 lift: .585"/.585" 110 LSA (optional camshaft)
  • TIMING CHAIN: 9 keyway adjustable billet double row
  • OIL PUMP: Melling oil pump
  • OIL PAN: PIE custom 6 quart capacity
  • VIBRATION DAMPER: Powerbond
  • BALANCED: External (for cast crank only)
  • HEAD GASKETS: Cometic head gaskets
  • HEAD FASTENERS: ARP head studs
  • CYLINDER HEADS: Edelbrock Maxports
  • ROCKER ARMS: 1.65 ratio roller .450 offset
  • INTAKE MANIFOLD: Indy 360-m
